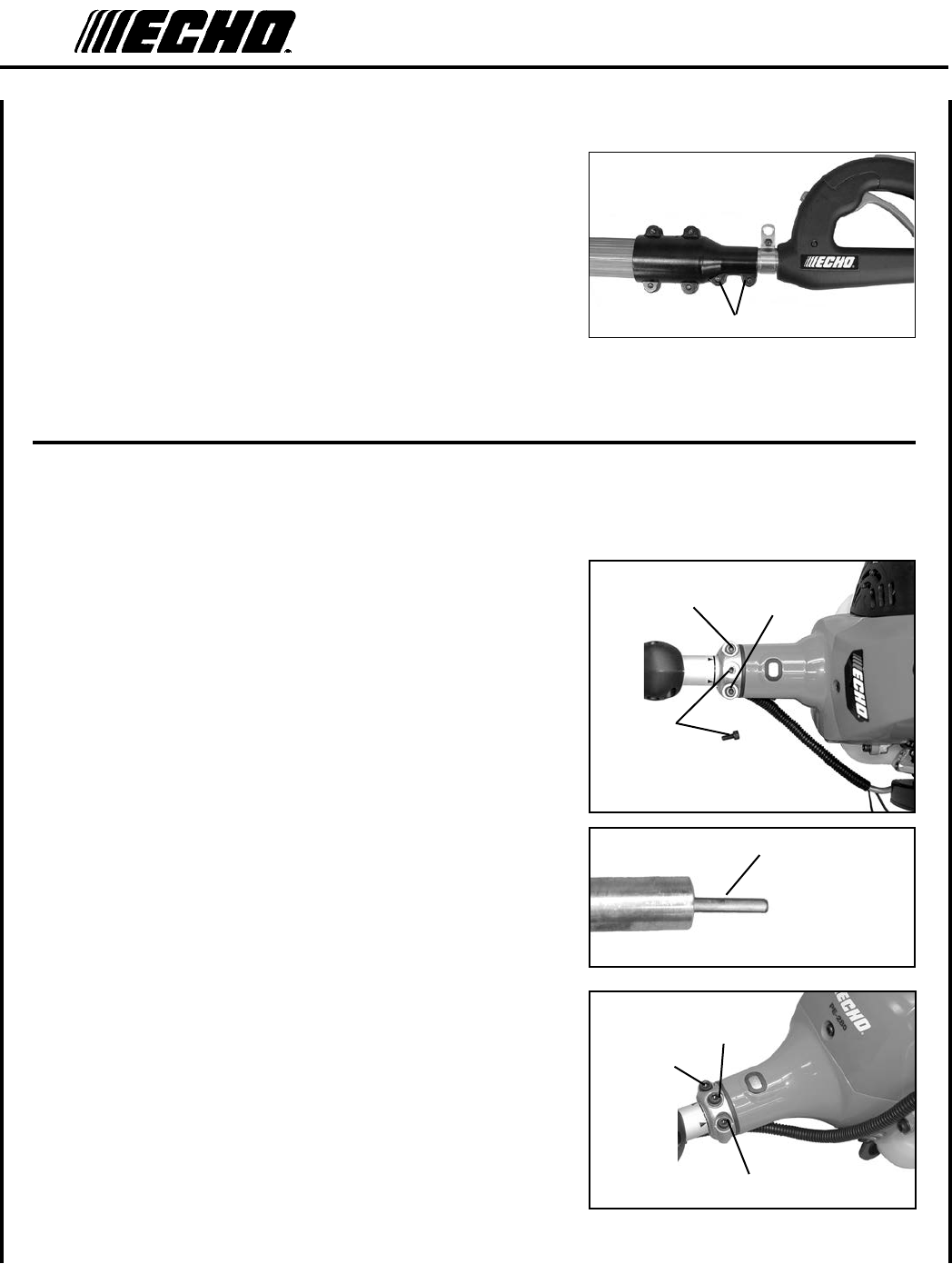

handle shafT / power head

1. Loosen two (2) clamping screws (A) and remove locating screw

(B).

2. Pull exible drive shaft coupler (C) 2-3 in. out of handle shaft as-

sembly.

3. Align exible drive shaft coupler with engine socket and slide

together until locating hole in shaft is visible through locating hole

in engine housing.

4. Install locating screw (B) and tighten clamping bolts (A).

4. Align exible drive shaft coupler with drive shaft socket and slide

together until handle shaft is fully seated into drive shaft.

5. Tighten clamping bolts (A).
