ASSEMBLY SRM-230

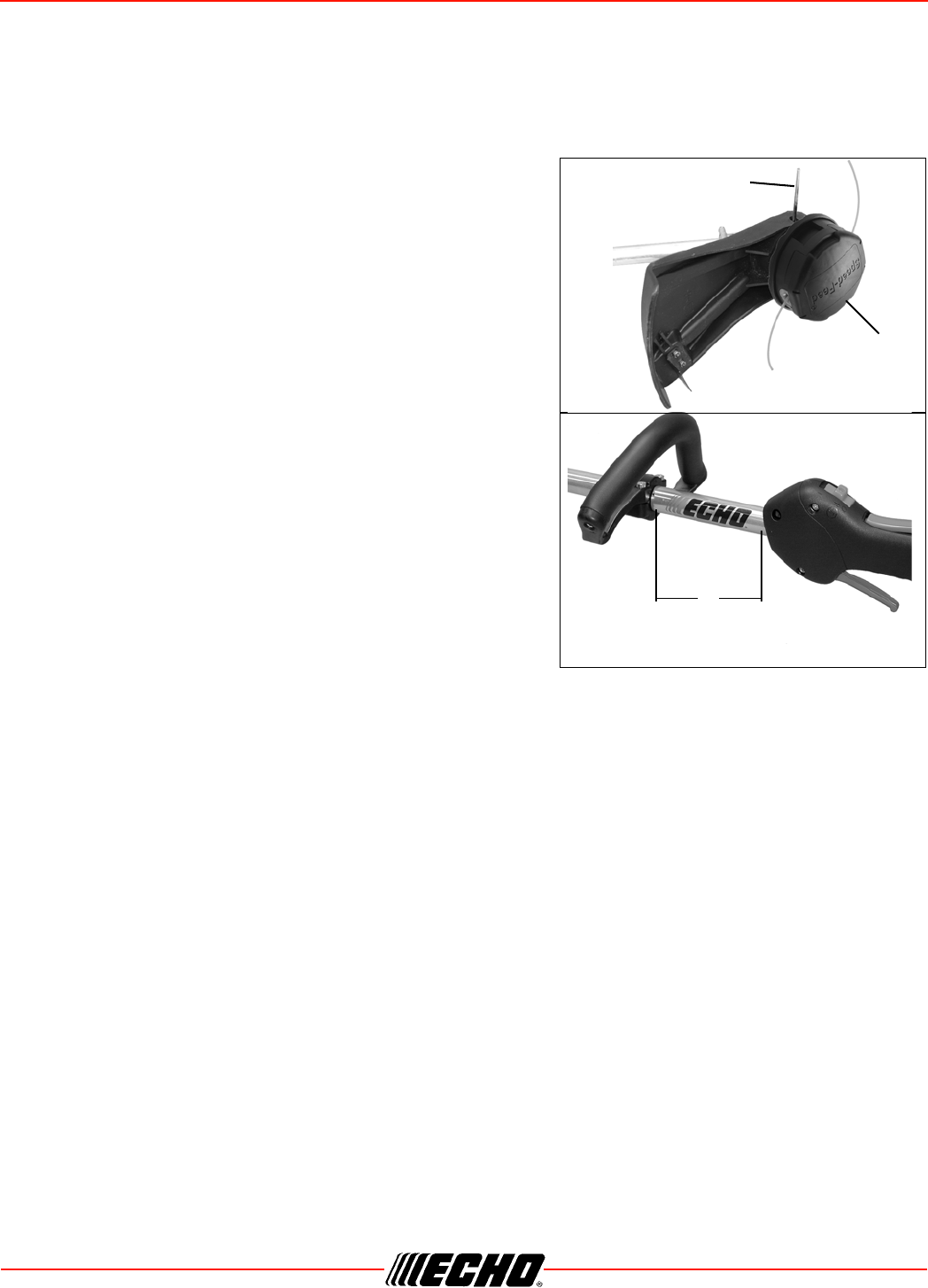

To Advance Trimmer Line

See Maintenance Section for nylon line replacement.

Note: To advance trimmer line, tap trimmer head against the ground while the head is turning at normal

operating speed.

Remove Nylon Line Head

Note: Do not disassemble nylon line head.

1. Align locking hole in upper plate with notch in edge of gear

housing and insert head locking tool (D).

2. Remove line head (E) by turning it clockwise until head is

completely off of shaft.

3. Remove locking tool (D).

Support Handle Installation

Note: Label shows minimum spacing for support handle

location.

1. Position support handle for comfortable operation and

secure screws.

MIN

SPACING
